Erector Water Plant


Click on photos for larger view.

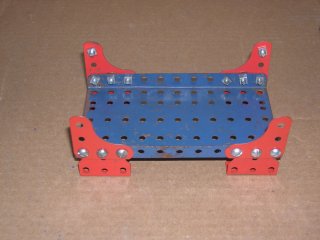

The pump mount.


800x600 - 2272x1704

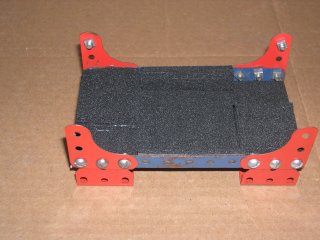

Lined the bottom with self-adhesive sound deadening material.


800x600 - 2272x1704

Using the same material, built up sides to hold pump in place.


800x600 - 2272x1704

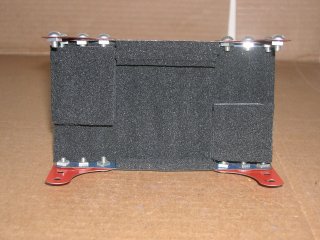

You can see it a little better like this.


800x600 - 2272x1704

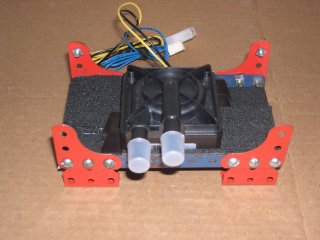

The pump in place.


800x600 - 2272x1704

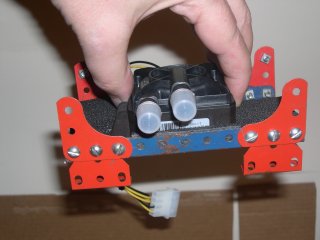

Just from the friction it's in tight enough to hold the mount to the pump when I pick it up.


800x600 - 2272x1704

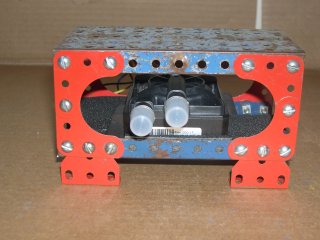

Then the top goes on.


800x600 - 2272x1704

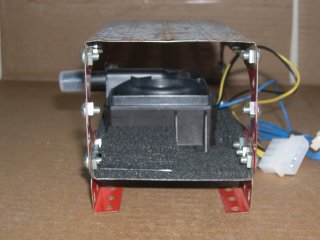

From the end you can see how high up the foam goes.


800x600 - 2272x1704

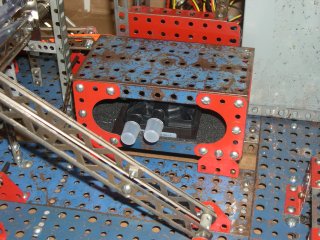

Mounted in place.


800x600 - 2272x1704

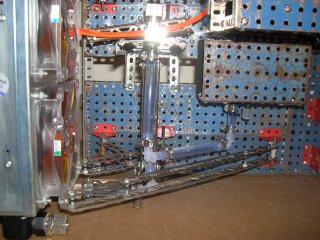

And after a little plumbing has been done.


800x600 - 2272x1704

Some more plumbing.


800x600 - 2272x1704

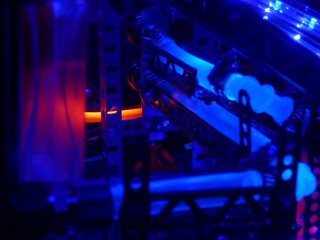

A more recent view under UV.


800x600 - 2272x1704

A closer shot under UV.


800x600 - 2272x1704

Closeup of some of the plumbing.


800x600 - 2272x1704

The plumbing under UV.


800x600 - 2272x1704

This darker shot gives a little better idea of what it looks like in real life. The tubing is a little UV reactive. When the UV blue water is in there, they will really stand out.


800x600 - 2272x1704



Last updated 2007/03/30
