Erector Water Plant


Click on photos for larger view.

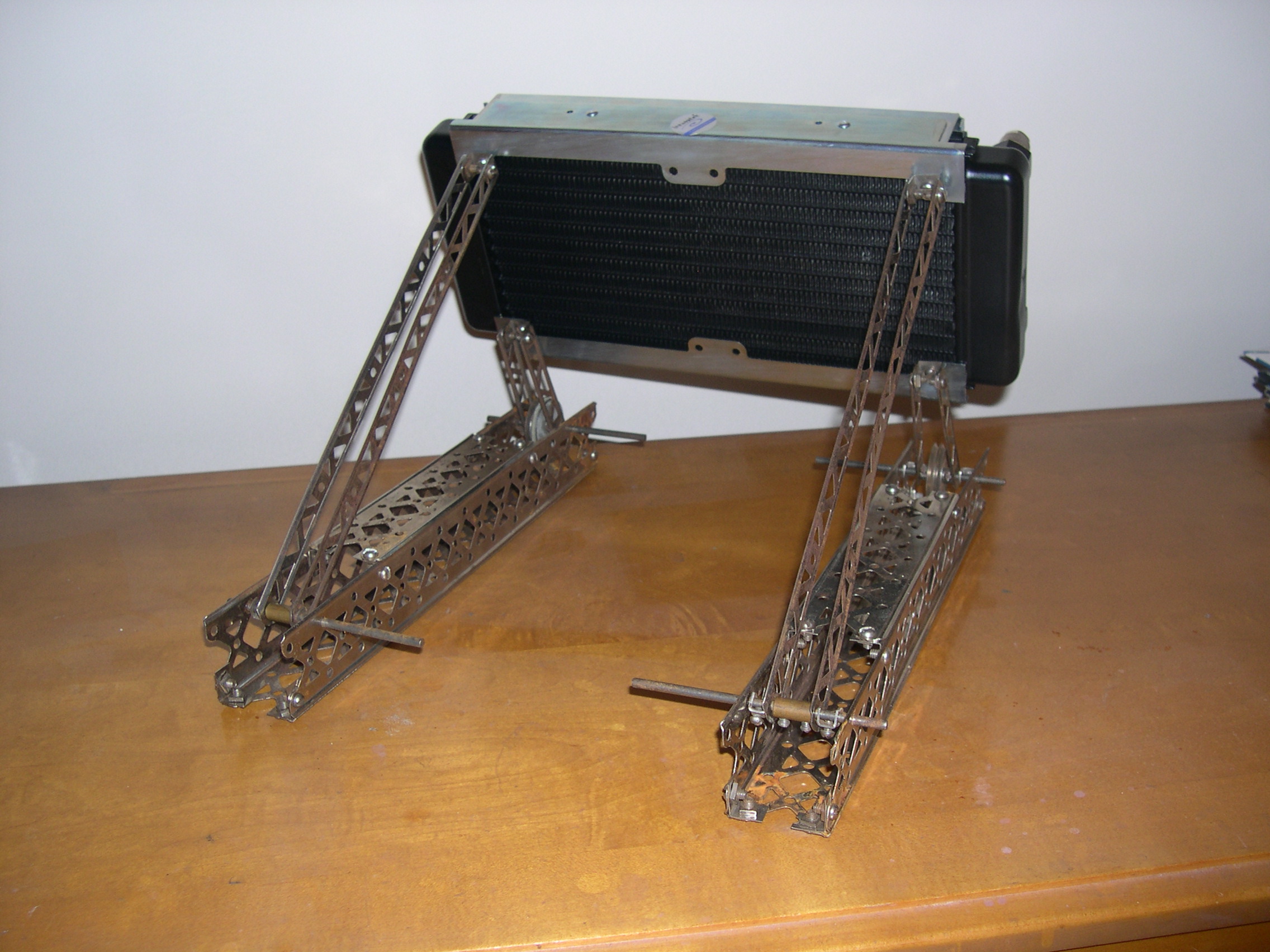

Prototype. Just experimenting with ways to mount the Inovotek radiator.


800x600 - 2272x1704

The basic mounting technique is used later. The U-bracket connected to the radiator (attached to the fan in the final version), the dual supports, and the bottom of the supports connected to axles. The connection in ther rear uses a spacer and two lock brackets to hold it in place. In this shot, the reason I used the pullys in front is bacause I hadn't gotten the rest of the Erector Sets from eBay, so I only had the two spacers.


800x600 - 2272x1704

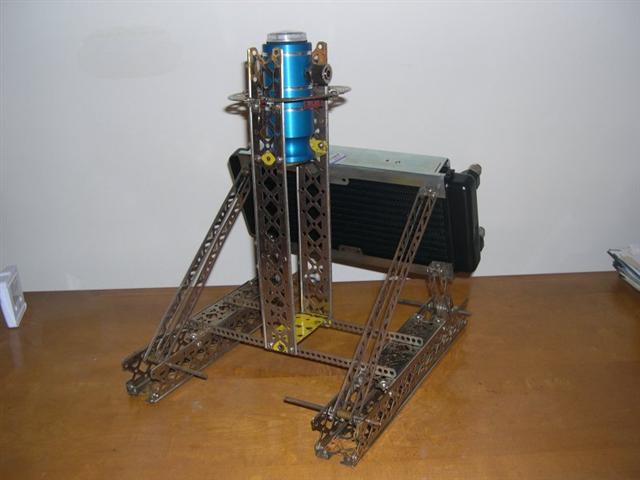

Prototype reservoir tower with Alphacool reservoir set on possible mount position on frame.


800x600 - 2272x1704

Once I made my mind up to use an external pump (which also means external power supply) I knew this design was running out of room. But I was learning.


800x600 - 2272x1704

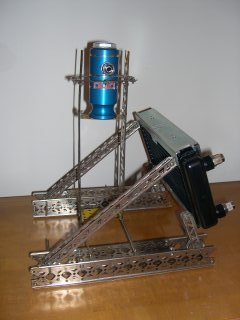

And a side view.


800x600 - 2272x1704



Last updated 2007/03/30
